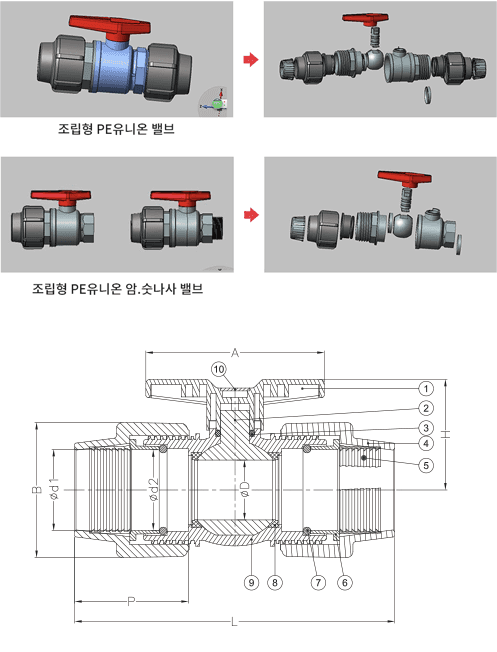

Item
Parts
Materials
Pcs
1
Handle
ABS
1
2
Ball
PP,PVC
1
3
Stem O'ring
EPDM
1
4
Union Nut
PP
2
5
Tensioning Ring
POM
2
6
Press Ring
PP
2
7
Connector O'ring
EPDM,NBR
2
8
Seat
TPV
2
9
Body
ABS,PVC
1
10
Cap
ABS
1
DIMENSION TABLE| SIZE | A | B | L | H | P |
|---|---|---|---|---|---|
| 25 (1") | 95 | 70 | 170 | 59.8 | 67 |
| 32 (1-1/4") | 100 | 82 | 184.5 | 66.3 | 66.6 |
| 40 (1-1/2") | 127 | 91.7 | 212 | 78.4 | 75.5 |
| 50 (2") | 144.5 | 108 | 245 | 93.4 | 85 |
